Kaya Heater
Couldn't load pickup availability
Pickup currently unavailable at US West C1
SIZE
|
EXTERNAL DIMENSIONS |
|
|
Width: |
17 3/4'' |
|
Depth: |
15'' |
|
Height: |
24 3/4 '' |
Configuration
|
electrical power: |
6kw，240V |
|
real weight: |
22.5kg/49.6lb |
|
gross weight: |
24.5kg/54lb |
|
Chassis |
Heating element |
Heating elements installation plate |
|
Base plate locking screw |
Transformer (On-heater control unit only) |
Sub-board (On-heater control unit only) |
|
Base plate |
Connection terminal TB1 |
GND terminal (Wall-mount Digital control unitonly) |
|
Wire clip |
Main-board (On-heater control unit only) |
Connection terminal TB2, TB3, TB4 (Wall-mount Digital control unit only have TB2) |
|
Manual reset thermostat KT2 |
Compartment cover |
Insulation board |
|
Wiring box |
Heating elements locking screw |
NTS-100 digital control panel ( Build-in control unit only) |
|

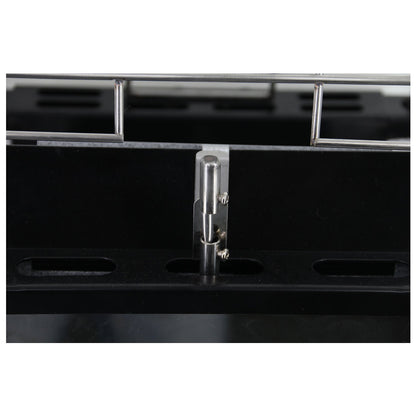

Heating element guard |
|
|
